Combination Spanner with Ring Ratchet, reversible
204-J...
Description
- both ends fit same nut size
- bent, reversible ringside
- smallest possible swivel angle 5 °
- high torque transmission
- ground heads
- matt chrome plated
- using ELORA Adaptor No. 118-..., wrench will be usable as (bit-) ratchet
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208

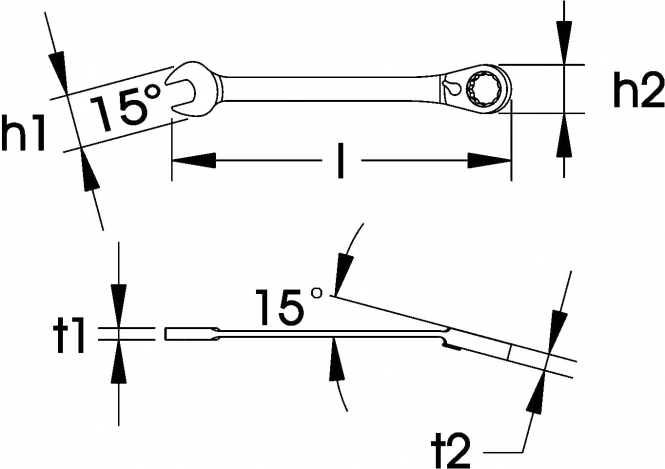

Measurements
| Number | Length mm | H1 mm | H2 mm | T1 mm | Weight g | More |
|---|---|---|---|---|---|---|
| 204-J 6 | 125 | 15,0 | 16,0 | 5,0 | 30 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 7 | 140 | 16,0 | 17,0 | 5,0 | 30 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 8 | 140 | 16,0 | 17,0 | 5,0 | 40 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 9 | 140 | 18,5 | 18,5 | 5,0 | 45 | PU:6 t2 mm:7,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 10 | 150 | 20,5 | 20,5 | 5,5 | 55 | PU:6 t2 mm:7,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 11 | 160 | 22,5 | 22,0 | 6,0 | 65 | PU:6 t2 mm:7,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 12 | 165 | 25,0 | 22,5 | 6,0 | 85 | PU:6 t2 mm:8,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 13 | 170 | 27,0 | 25,0 | 6,5 | 95 | PU:6 t2 mm:9,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 14 | 180 | 28,5 | 27,0 | 7,0 | 125 | PU:6 t2 mm:9,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 15 | 190 | 31,0 | 28,5 | 7,0 | 125 | PU:6 t2 mm:9,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 16 | 200 | 33,0 | 29,5 | 7,0 | 160 | PU:6 t2 mm:10,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 17 | 210 | 35,0 | 32,0 | 8,0 | 180 | PU:6 t2 mm:10,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 18 | 225 | 37,0 | 32,0 | 8,0 | 205 | PU:6 t2 mm:10,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 19 | 235 | 38,5 | 34,5 | 8,5 | 235 | PU:6 t2 mm:11,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 22 | 290 | 45,0 | 41,0 | 9,5 | 375 | PU:6 t2 mm:13,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
| 204-J 24 | 320 | 45,0 | 41,0 | 9,5 | 505 | PU:6 t2 mm:14,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working |
