Combination Spanner, inch

205A-...

Description

long version, both ends fit same nut size
cranked
ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
according to DIN 3113, Form B, ISO 3318, ISO 7738

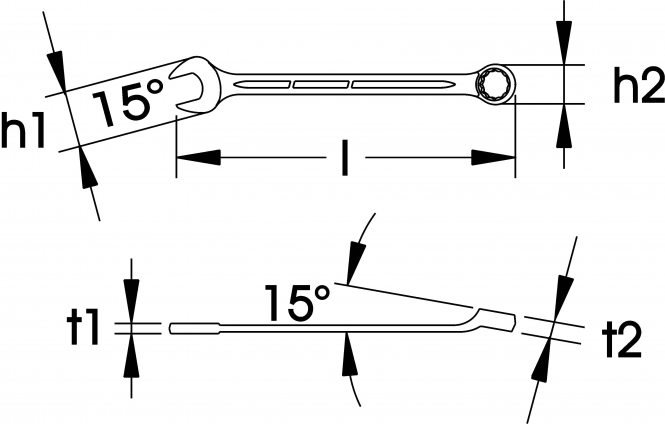

Measurements

Number	Ring side	Head	Length mm	H1 (max.) mm	Weight g	More
205A-1/4	bihexagon	polished	127	18,5	20	PU:12 h2 (max.) mm:11,4 t1 (max.) mm:4,4 t2 (max.) mm:6,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-5/16	bihexagon	polished	139	20,5	30	PU:12 h2 (max.) mm:14,0 t1 (max.) mm:4,7 t2 (max.) mm:7,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-11/32	bihexagon	polished	144	22,5	40	PU:12 h2 (max.) mm:15,5 t1 (max.) mm:4,7 t2 (max.) mm:8,1 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-3/8	bihexagon	polished	149	24,0	40	PU:12 h2 (max.) mm:16,5 t1 (max.) mm:5,2 t2 (max.) mm:8,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-7/16	bihexagon	polished	162	27,0	60	PU:12 h2 (max.) mm:18,5 t1 (max.) mm:5,3 t2 (max.) mm:9,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1/2	bihexagon	polished	177	30,0	72	PU:6 h2 (max.) mm:21,0 t1 (max.) mm:5,8 t2 (max.) mm:10,2 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-9/16	bihexagon	polished	194	33,0	88	PU:6 h2 (max.) mm:22,5 t1 (max.) mm:6,3 t2 (max.) mm:10,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-19/32	bihexagon	polished	214	35,5	120	PU:6 h2 (max.) mm:25,5 t1 (max.) mm:6,7 t2 (max.) mm:11,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-5/8	bihexagon	polished	214	35,5	120	PU:6 h2 (max.) mm:25,5 t1 (max.) mm:6,7 t2 (max.) mm:11,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-11/16	bihexagon	polished	234	39,0	150	PU:6 h2 (max.) mm:27,0 t1 (max.) mm:7,2 t2 (max.) mm:12,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-3/4	bihexagon	polished	256	41,0	175	PU:6 h2 (max.) mm:30,0 t1 (max.) mm:7,6 t2 (max.) mm:13,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-13/16	bihexagon	polished	274	45,0	220	PU:6 h2 (max.) mm:33,0 t1 (max.) mm:8,0 t2 (max.) mm:14,2 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-7/8	bihexagon	polished	295	48,0	290	PU:6 h2 (max.) mm:34,5 t1 (max.) mm:8,4 t2 (max.) mm:15,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-15/16	bihexagon	polished	319	51,0	325	PU:3 h2 (max.) mm:37,0 t1 (max.) mm:9,0 t2 (max.) mm:15,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1	bihexagon	polished	344	55,0	390	PU:3 h2 (max.) mm:39,0 t1 (max.) mm:9,7 t2 (max.) mm:17,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.1/16	bihexagon	polished	369	60,0	510	PU:3 h2 (max.) mm:43,0 t1 (max.) mm:10,4 t2 (max.) mm:18,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.1/8	bihexagon	polished	369	60,0	510	PU:3 h2 (max.) mm:43,0 t1 (max.) mm:10,4 t2 (max.) mm:18,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.3/16	bihexagon	polished	394	64,0	605	PU:3 h2 (max.) mm:45,0 t1 (max.) mm:11,2 t2 (max.) mm:19,6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.1/4	bihexagon	polished	419	69,0	770	PU:3 h2 (max.) mm:48,0 t1 (max.) mm:11,7 t2 (max.) mm:20,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.5/16	bihexagon	matt chrome plated	419	69,0	770	PU:3 h2 (max.) mm:48,0 t1 (max.) mm:11,7 t2 (max.) mm:20,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.3/8	bihexagon	matt chrome plated	459	77,0	950	PU:3 h2 (max.) mm:55,0 t1 (max.) mm:12,7 t2 (max.) mm:22,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.7/16	bihexagon	matt chrome plated	459	77,0	950	PU:3 h2 (max.) mm:55,0 t1 (max.) mm:12,7 t2 (max.) mm:22,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-38 / 1.1/2	bihexagon	polished	459	77,0	950	PU:3 h2 (max.) mm:55,0 t1 (max.) mm:12,7 t2 (max.) mm:22,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-41 / 1.5/8	bihexagon	polished	509	86,0	1350	PU:3 h2 (max.) mm:61,0 t1 (max.) mm:13,7 t2 (max.) mm:24,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.11/16	bihexagon	matt chrome plated	509	86,0	1340	PU:3 h2 (max.) mm:61,0 t1 (max.) mm:13,7 t2 (max.) mm:24,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.3/4	bihexagon	matt chrome plated	521	93,0	1750	PU:1 h2 (max.) mm:66,0 t1 (max.) mm:14,7 t2 (max.) mm:25,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-46 / 1.13/16	bihexagon	polished	521	93,0	1750	PU:1 h2 (max.) mm:66,0 t1 (max.) mm:14,7 t2 (max.) mm:25,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-1.7/8	bihexagon	matt chrome plated	521	93,0	1750	PU:1 h2 (max.) mm:66,0 t1 (max.) mm:14,7 t2 (max.) mm:25,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2	bihexagon	matt chrome plated	560	104,0	2200	PU:1 h2 (max.) mm:74,0 t1 (max.) mm:16,7 t2 (max.) mm:26,6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2.1/16	bihexagon	matt chrome plated	560	104,0	2200	PU:1 h2 (max.) mm:74,0 t1 (max.) mm:16,7 t2 (max.) mm:26,6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2.1/8	bihexagon	matt chrome plated	570	112,0	2900	PU:1 h2 (max.) mm:82,0 t1 (max.) mm:19,6 t2 (max.) mm:29,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2.3/16	bihexagon	matt chrome plated	570	112,0	2900	PU:1 h2 (max.) mm:82,0 t1 (max.) mm:19,6 t2 (max.) mm:29,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2.1/4	bihexagon	matt chrome plated	570	112,0	2900	PU:1 h2 (max.) mm:82,0 t1 (max.) mm:19,6 t2 (max.) mm:29,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2.3/8	bihexagon	matt chrome plated	660	122,0	3900	PU:1 h2 (max.) mm:88,0 t1 (max.) mm:21,0 t2 (max.) mm:32,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2.1/2	bihexagon	matt chrome plated	710	130,0	4700	PU:1 h2 (max.) mm:97,0 t1 (max.) mm:23,0 t2 (max.) mm:34,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2.9/16	bihexagon	matt chrome plated	710	130,0	4700	PU:1 h2 (max.) mm:97,0 t1 (max.) mm:23,0 t2 (max.) mm:34,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-2.3/4	bihexagon	matt chrome plated	760	142,0	5600	PU:1 h2 (max.) mm:104,0 t1 (max.) mm:25,0 t2 (max.) mm:36,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-3	bihexagon	matt chrome plated	810	150,0	6600	PU:1 h2 (max.) mm:110,0 t1 (max.) mm:27,0 t2 (max.) mm:40,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205A-3.1/4	bihexagon	matt chrome plated	855	160,0	7500	PU:1 h2 (max.) mm:116,0 t1 (max.) mm:30,0 t2 (max.) mm:45,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
