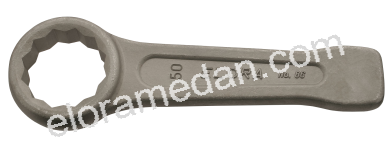

Ring Slogging Spanner, inch
86A-...
Description
- heavy, drop-forged type
- sand-blasted
- further sizes on request
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 7444
Istilah Lain / Penyebutan
ring ketok, ring pukul
Measurements
| Number | Length mm | Weight g |
|---|---|---|
| 86A-1 | 165 | 230 |
| 86-27 / 1.1/16 | 180 | 350 |
| 86A-1.1/8 | 180 | 350 |
| 86A-1.3/16 | 190 | 465 |
| 86A-1.1/4 | 190 | 465 |
| 86A-1.5/16 | 190 | 465 |
| 86A-1.3/8 | 210 | 570 |
| 86A-1.7/16 | 210 | 570 |
| 86-38 / 1.1/2 | 210 | 570 |
| 86A-1.9/16 | 230 | 760 |
| 86-41 / 1.5/8 | 230 | 760 |
| 86A-1.11/16 | 230 | 760 |
| 86A-1.3/4 | 242 | 950 |
| 86-46 / 1.13/16 | 242 | 950 |
| 86A-1.7/8 | 242 | 950 |
| 86A-1.15/16 | 254 | 1120 |
| 86A-2 | 254 | 1120 |
| 86A-2.1/16 | 254 | 1120 |
| 86A-2.1/8 | 268 | 1560 |
| 86A-2.3/16 | 268 | 1560 |
| 86A-2.1/4 | 268 | 1560 |
| 86A-2.5/16 | 283 | 1625 |
| 86A-2.3/8 | 283 | 1625 |
| 86A-2.7/16 | 283 | 1625 |
| 86A-2.1/2 | 283 | 1625 |
| 86A-2.9/16 | 300 | 2020 |
| 86A-2.5/8 | 300 | 2000 |
| 86A-2.3/4 | 330 | 2970 |
| 86A-2.13/16 | 330 | 3000 |
| 86A-2.7/8 | 330 | 2840 |
| 86A-2.15/16 | 330 | 2940 |
| 86A-3 | 330 | 2940 |
| 86A-3.1/8 | 360 | 4000 |
| 86A-3.1/4 | 360 | 3900 |
| 86A-3.3/8 | 360 | 4000 |
| 86A-3.1/2 | 360 | 3490 |
| 86A-3.5/8 | 385 | 5400 |
| 86A-3.3/4 | 385 | 5590 |
| 86A-3.7/8 | 388 | 5400 |
| 86A-4 | 420 | 6530 |
| 86A-4.1/8 | 420 | 6530 |
| 86A-4.1/4 | 450 | 8600 |
| 86A-4.1/2 | 450 | 8600 |
