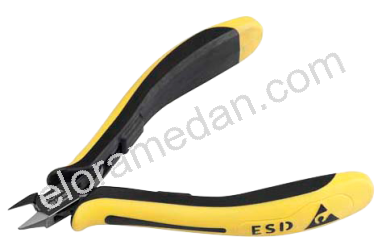

Electronic Side Cutter ESD
4520-...
Description
- for all work with electrostatic endangered components
- pointed head, maximum stability under load by additional inductive hardening and box joint, with double opening leaf spring, polished and high gloss gunmetal-finished, with 2-C ESD handles, surface resistance 106–109 Ohm
- F= with fine bevel
- O= without bevel
- cutting edge hardness 61-63 HRC
- ELORA-high grade tool steel C60 / 1.0601
- DIN ISO 9654, ESD: DIN IEC 614340-5-1
Measurements
| Number | Medium mm / AWG | Soft mm / AWG | Length mm | Weight g |
|---|---|---|---|---|
| 4520-F E 2K | 0,8 / 20 | 1,5 / 15 | 120 | 91 |
| 4520-O E 2K | 0,6 / 22 | 1,5 / 15 | 120 | 92 |
