Double Open Ended Spanner, inch
100A-...
Description
- matt chrome plated, heads ground
- ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
- according to DIN 3110, ISO 3318, ISO 1085, ISO 10102
Istilah Lain / Penyebutan
kunci pas, kunci pas inch, kunci pas inchi, kunci pas inci, pas inch, pas inchi, pas inci

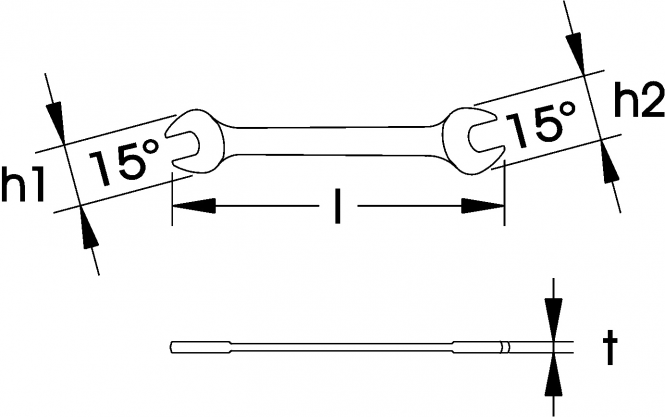

Measurements
| Number | Length mm | H1 mm | H2 mm | T mm | Weight g |
|---|---|---|---|---|---|
| 100A-1/4x5/16 | 125 | 14,2 | 16,2 | 3,5 | 24 |
| 100A-5/16x3/8 | 140 | 18,2 | 20,2 | 4,0 | 36 |
| 100A-3/8x7/16 | 155 | 22,1 | 24,1 | 4,5 | 52 |
| 100A-7/16x1/2 | 172 | 26,1 | 28,1 | 5,00 | 74 |
| 100A-1/2x9/16 | 188 | 28,1 | 30,1 | 5,5 | 95 |
| 100A-9/16x5/8 | 188 | 30,1 | 32,1 | 5,5 | 95 |
| 100A-5/8x11/16 | 205 | 34,1 | 36,0 | 6,2 | 126 |
| 100A-5/8x3/4 | 220 | 34,1 | 37,9 | 7,0 | 170 |
| 100A-11/16x3/4 | 220 | 36,0 | 39,9 | 7,0 | 170 |
| 100A-3/4x25/32 | 220 | 37,9 | 39,9 | 7,0 | 185 |
| 100A-3/4x7/8 | 235 | 39,9 | 46,0 | 7,5 | 235 |
| 100A-13/16x7/8 | 235 | 42,1 | 46,0 | 7,5 | 240 |
| 100A-15/16x1 | 265 | 50,0 | 54,0 | 8,8 | 340 |
| 100A-1x1.1/8 | 265 | 50,0 | 56,0 | 8,8 | 375 |
| 100A-1.1/16x1.1/8 | 300 | 56,0 | 59,3 | 9,8 | 450 |
| 100A-1.1/16x1.1/4 | 300 | 56,0 | 65,7 | 9,8 | 460 |
| 100A-1.3/16x1.5/16 | 325 | 61,7 | 76,0 | 10,4 | 460 |
| 100A-1.1/4x1.3/8 | 325 | 65,7 | 76,0 | 10,4 | 650 |
| 100A-1.1/4x1.7/16 | 325 | 65,7 | 76,0 | 10,4 | 650 |
| 100A-1.5/16x1.1/2 | 325 | 65,7 | 76,0 | 10,4 | 650 |
| 100A-1.3/8x1.1/2 | 325 | 65,7 | 76,0 | 10,4 | 670 |
| 100A-1.7/16x1.5/8 | 360 | 76,0 | 87,0 | 12,0 | 860 |
| 100A-1.1/2x1.5/8 | 360 | 76,0 | 87,0 | 12,0 | 860 |
| 100A-1.3/4x2 | 450 | 98,0 | 107,0 | 13,0 | 1610 |
| 100A-1.13/16x2 | 450 | 98,0 | 107,0 | 13,0 | 1610 |
| 100A-1.7/8x2.1/16 | 450 | 98,0 | 107,0 | 13,0 | 1610 |
| 100A-2.3/16x2.3/8 | 560 | 113,0 | 123,0 | 18,0 | 3020 |
