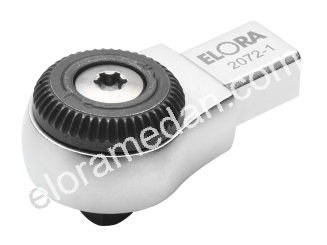

Ratchet Insert Tools, fine tooth
2072-..., 2076-1
Description
- with small robust head
- forged, fine tooth gear wheel with handy metal switching disc
- 5° smallest swivel angle
- with locking pin
- chrome vanadium 31CrV3 / 1.2208
- male square according to DIN 3120, ISO 1174, with ball locking device
Measurements

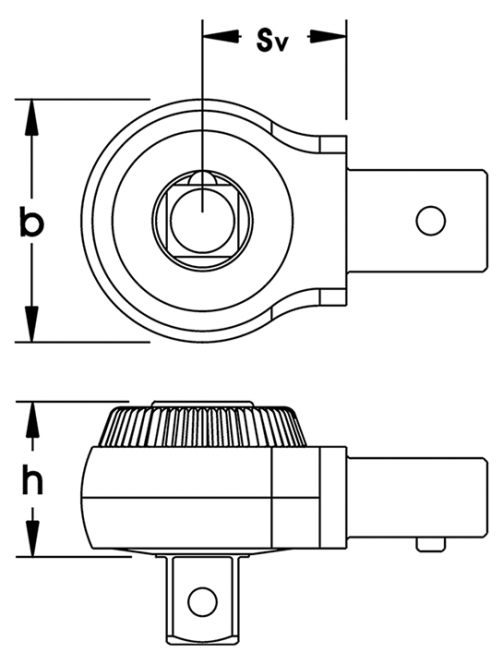

| Number | Output mm | Drive mm | SV mm | B mm | Weight g | More |
|---|---|---|---|---|---|---|
| 2072-1 | 1/4" | 9x12 | 17,5 | 25 | 80 | PU:1 h mm:16 |
| 2072-2 | 3/8" | 9x12 | 17,5 | 34 | 160 | PU:1 h mm:22 |
| 2072-3 | 1/2" | 9x12 | 17,5 | 34 | 170 | PU:1 h mm:23 |
| 2076-1 | 1/2" | 14x18 | 25 | 41 | 339 | PU:1 h mm:30 |
