Fixed Square Insert Tools
2074-..., 2078-1
Description
- forged with locking pin
- chrome-plated
- chrome vanadium 31CrV3 / 1.2208
- male square according to DIN 3120, ISO 1174, with ball locking device

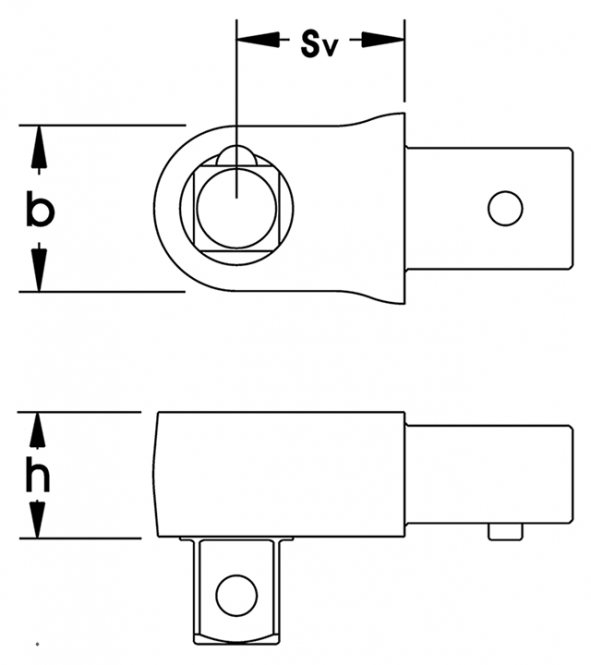

Measurements
| Number | Output | Drive mm | SV mm | B mm | Weight g | More |
|---|---|---|---|---|---|---|
| 2074-1 | 1/4" | 9x12 | 17,5 | 13 | 50 | PU:1 h mm:12 |
| 2074-2 | 3/8" | 9x12 | 17,5 | 19 | 89 | PU:1 h mm:16 |
| 2074-3 | 1/4" | 9x12 | 17,5 | 19 | 115 | PU:1 h mm:16 |
| 2078-1 | 1/2" | 14x18 | 25 | 25 | 206 | PU:1 h mm:19 |
