Torque Wrench with rectangular intake
2033-20
Description
- for use with ELORA interchangeable spanner heads
- main measurement unit for Nm with vernier scale, secondary measurement unit for ft-lb
- safe locking of the set torque value
- bi-directional fixing by turning the torque wrench
- with robust, matt steel tube
- with very noticeable and audible ("click") signal
- nonslip QUATROLIT-2C-handle

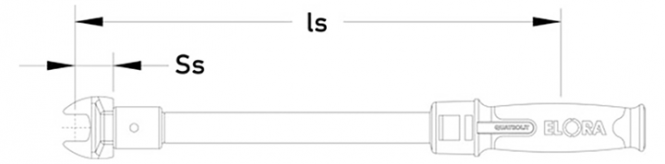

- factory depth gauges: Ss = 17,5 mm (9x12 mm) and Ss = 25 mm (14x18 mm)
- according to DIN EN ISO 6789:2017 Part 1, Typ ll Class A
- with traceable declaration of conformance
- tripping accuracy +- 4%
Measurements
| Number | Drive mm | LS mm | Measuring range Nm | Graduation Nm | Weight g | More |
|---|---|---|---|---|---|---|
| 2033-20 | 9x12 | 282,5 | 4-20 | 0,1 | 595 | PU:1 Measuring range in.lb.:39,8-172,6 Graduation in.lb.:0,9 Length mm:315 |
