Torque Wrench with rectangular intake
2034-...
Description
- for use with ELORA interchangeable spanner heads
- main measurement unit for Nm with vernier scale, secondary measurement unit for ft.-lb.
- safe locking of the adjusted torque value by securing button at the handle end
- ELORA-No. 2179-S: exchanging the locking knob through the safety cap, the torque can be fixed tamper-resistant
- for clockwise and anti-clockwise tightening by turning the torque wrench
- with robust, matt steel tube
- with very noticeable and audible (‚‘click‘‘) signal
- nonslip QUATROLIT®-2C-handle

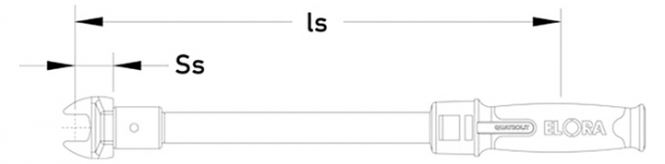

- factory depth gauges: Ss = 17,5 mm (9 x 12 mm) and Ss = 25 mm (14 x 18 mm)
- according to DIN EN ISO 6789:2017 Part 1, Typ II Class A
- with traceable declaration of conformance
- tripping accuracy +- 3%
Measurements
| Number | Drive mm | SS mm | Measuring range Nm | Graduation Nm | Weight g | More |
|---|---|---|---|---|---|---|
| 2034-20 | 9x12 | 282,0 | 4-20 | 0,05 | 440 | PU:1 Measuring range ft.lb.:30-180 in.lb. Graduation ft.lb.:15 Length mm:282 |
| 2034-60 | 9x12 | 314,5 | 10-60 | 0,25 | 1000 | PU:1 Measuring range ft.lb.:9-45 Graduation ft.lb.:4 Length mm:345 |
| 2034-125 | 9x12 | 370,5 | 25-125 | 0,25 | 900 | PU:1 Measuring range ft.lb.:20-90 Graduation ft.lb.:5 Length mm:438 |
| 2034-200 | 14x18 | 410,0 | 4-200 | 0,5 | 1198 | PU:1 Measuring range ft.lb.:30-150 Graduation ft.lb.:10 Length mm:455 |
| 2034-335 | 14x18 | 470,0 | 65-335 | 1,0 | 1305 | PU:1 Measuring range ft.lb.:50-250 Graduation ft.lb.:10 Length mm:515 |
