Combination Spanner, metric

205-...

Description

long version, both ends fit same nut size
cranked
jaw polished, shaft matt chrome plated
ELORA-Chrome-Vanadium 31 CrV 3 / 1.2208
according to DIN 3113, Form B, ISO 3318, ISO 7738

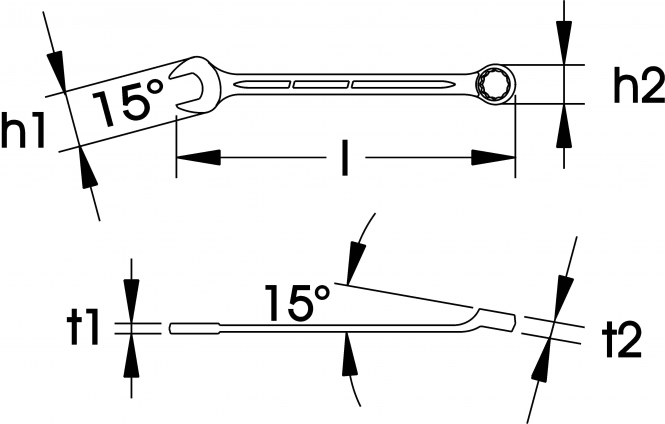

Measurements

Number	Ring side	Head	Length mm	H1 (max.) mm	Weight g	More
205-5	hexagon	polished	123	16,5	20	PU:12 h2 (max.) mm:10,0 t1 (max.) mm:4,4 t2 (max.) mm:6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-5,5	bihexagon	polished	123	16,5	20	PU:12 h2 (max.) mm:10,0 t1 (max.) mm:4,4 t2 (max.) mm:6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-6	bihexagon	polished	127	18,0	20	PU:12 h2 (max.) mm:11,0 t1 (max.) mm:4,4 t2 (max.) mm:6,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-7	bihexagon	polished	127	18,0	22	PU:12 h2 (max.) mm:12,5 t1 (max.) mm:4,4 t2 (max.) mm:6,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-8	bihexagon	polished	139	20,5	30	PU:12 h2 (max.) mm:14,0 t1 (max.) mm:4,7 t2 (max.) mm:7,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-9	bihexagon	polished	144	22,5	40	PU:12 h2 (max.) mm:15,5 t1 (max.) mm:4,7 t2 (max.) mm:8,1 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-10	bihexagon	polished	149	24,0	40	PU:12 h2 (max.) mm:16,5 t1 (max.) mm:5,2 t2 (max.) mm:8,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-11	bihexagon	polished	162	27,0	60	PU:12 h2 (max.) mm:18,5 t1 (max.) mm:5,3 t2 (max.) mm:9,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-12	bihexagon	polished	170	29,0	75	PU:6 h2 (max.) mm:19,5 t1 (max.) mm:5,4 t2 (max.) mm:9,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-13	bihexagon	polished	177	30,0	75	PU:6 h2 (max.) mm:21,0 t1 (max.) mm:5,8 t2 (max.) mm:10,2 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-14	bihexagon	polished	194	33,0	88	PU:6 h2 (max.) mm:22,5 t1 (max.) mm:6,3 t2 (max.) mm:10,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-15	bihexagon	polished	214	35,5	120	PU:6 h2 (max.) mm:25,5 t1 (max.) mm:6,7 t2 (max.) mm:11,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-16	bihexagon	polished	214	35,5	120	PU:6 h2 (max.) mm:25,5 t1 (max.) mm:6,7 t2 (max.) mm:11,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-17	bihexagon	polished	234	39,0	150	PU:6 h2 (max.) mm:27,0 t1 (max.) mm:7,2 t2 (max.) mm:12,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-18	bihexagon	polished	245	41,0	160	PU:6 h2 (max.) mm:28,5 t1 (max.) mm:7,6 t2 (max.) mm:13,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-19	bihexagon	polished	256	41,0	190	PU:6 h2 (max.) mm:30,0 t1 (max.) mm:7,6 t2 (max.) mm:13,3 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-20	bihexagon	polished	274	45,0	220	PU:6 h2 (max.) mm:33,0 t1 (max.) mm:8,0 t2 (max.) mm:14,2 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-21	bihexagon	polished	274	45,0	220	PU:6 h2 (max.) mm:33,0 t1 (max.) mm:8,0 t2 (max.) mm:14,2 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-22	bihexagon	polished	295	48,0	290	PU:6 h2 (max.) mm:34,5 t1 (max.) mm:8,4 t2 (max.) mm:15,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-23	bihexagon	polished	319	51,0	325	PU:3 h2 (max.) mm:37,0 t1 (max.) mm:9,0 t2 (max.) mm:15,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-24	bihexagon	polished	319	51,0	325	PU:3 h2 (max.) mm:37,0 t1 (max.) mm:9,0 t2 (max.) mm:15,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-25	bihexagon	polished	344	55,0	390	PU:3 h2 (max.) mm:39,0 t1 (max.) mm:9,7 t2 (max.) mm:17,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-26	bihexagon	polished	344	55,0	390	PU:3 h2 (max.) mm:39,0 t1 (max.) mm:9,7 t2 (max.) mm:17,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-27	bihexagon	polished	369	60,0	510	PU:3 h2 (max.) mm:43,0 t1 (max.) mm:10,4 t2 (max.) mm:18,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-28	bihexagon	polished	369	60,0	510	PU:3 h2 (max.) mm:43,0 t1 (max.) mm:10,4 t2 (max.) mm:18,5 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-29	bihexagon	polished	394	64,0	605	PU:3 h2 (max.) mm:45,0 t1 (max.) mm:11,2 t2 (max.) mm:19,6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-30	bihexagon	polished	394	64,0	605	PU:3 h2 (max.) mm:45,0 t1 (max.) mm:11,2 t2 (max.) mm:19,6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-32	bihexagon	polished	419	69,0	770	PU:3 h2 (max.) mm:48,0 t1 (max.) mm:11,7 t2 (max.) mm:20,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-33	bihexagon	polished	419	69,0	770	PU:3 h2 (max.) mm:48,0 t1 (max.) mm:11,7 t2 (max.) mm:20,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-34	bihexagon	polished	419	69,0	770	PU:3 h2 (max.) mm:48,0 t1 (max.) mm:11,7 t2 (max.) mm:20,7 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-36	bihexagon	matt chrome plated	459	77,0	950	PU:3 h2 (max.) mm:55,0 t1 (max.) mm:12,7 t2 (max.) mm:22,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-38 / 1.1/2	bihexagon	matt chrome plated	459	77,0	950	PU:3 h2 (max.) mm:55,0 t1 (max.) mm:12,7 t2 (max.) mm:22,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-41 / 1.5/8	bihexagon	matt chrome plated	509	86,0	1350	PU:3 h2 (max.) mm:61,0 t1 (max.) mm:13,7 t2 (max.) mm:24,9 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-46 / 1.13/16	bihexagon	matt chrome plated	521	93,0	1750	PU:1 h2 (max.) mm:66,0 t1 (max.) mm:14,7 t2 (max.) mm:25,8 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-50	bihexagon	matt chrome plated	560	104,0	2225	PU:1 h2 (max.) mm:74,0 t1 (max.) mm:16,7 t2 (max.) mm:26,6 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-55	bihexagon	matt chrome plated	570	112,0	2640	PU:1 h2 (max.) mm:82,0 t1 (max.) mm:19,6 t2 (max.) mm:29,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-60	bihexagon	matt chrome plated	660	122,0	3700	PU:1 h2 (max.) mm:88,0 t1 (max.) mm:21,0 t2 (max.) mm:32,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-65	bihexagon	matt chrome plated	710	130,0	4600	PU:1 h2 (max.) mm:97,0 t1 (max.) mm:23,0 t2 (max.) mm:34,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-70	bihexagon	matt chrome plated	760	142,0	5600	PU:1 h2 (max.) mm:104,0 t1 (max.) mm:25,0 t2 (max.) mm:36,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-75	bihexagon	matt chrome plated	810	150,0	6600	PU:1 h2 (max.) mm:110,0 t1 (max.) mm:27,0 t2 (max.) mm:40,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
205-80	bihexagon	matt chrome plated	855	160,0	8900	PU:1 h2 (max.) mm:116,0 t1 (max.) mm:30,0 t2 (max.) mm:45,0 Productinformation: ELORA "ELO-Drive" Combination and Ring Spanners are equipped with the "ELO-Drive" profile on the ring side: higher torque on the flanks of the screws/nuts without damage of the same dynamic and safe working
