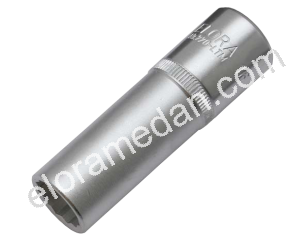

Sockets 1/2", extra deep, metric
771-LT...
Description
- especially suitable for deep-set female screws on long threaded bolts
- hot forged
- chrome-plated, polished
- knurled
- ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
- according to DIN 3124, ISO 2725-1

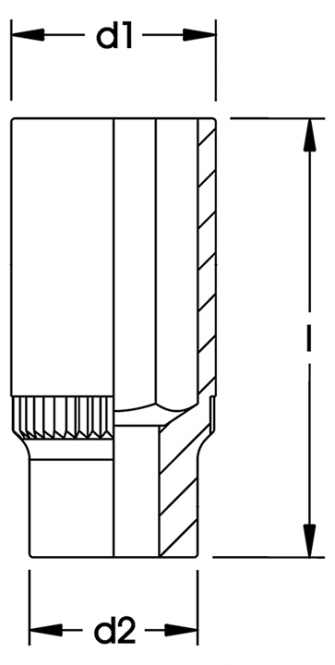

Measurements
| Number | Length mm | D1 mm | D2 mm | Weight g |
|---|---|---|---|---|
| 771-LT 22 | 80 | 30,4 | 24,0 | 190 |
| 771-LT 10 | 80 | 15,1 | 23,0 | 104 |
| 771-LT 11 | 80 | 16,3 | 23,0 | 106 |
| 771-LT 12 | 80 | 17,7 | 23,0 | 108 |
| 771-LT 13 | 80 | 18,9 | 23,0 | 122 |
| 771-LT 14 | 80 | 20,2 | 23,0 | 130 |
| 771-LT 15 | 80 | 21,5 | 23,5 | 130 |
| 771-LT 16 | 80 | 22,7 | 24,0 | 130 |
| 771-LT 17 | 80 | 24,0 | 23,0 | 135 |
| 771-LT 18 | 80 | 25,5 | 23,0 | 155 |
| 771-LT 19 | 80 | 26,6 | 23,0 | 155 |
| 771-LT 21 | 80 | 29,1 | 23,5 | 185 |
| 771-LT 38 / 1.1/2 | 80 | 51,5 | 27,5 | 375 |
Produk Aksesoris
Produk Serupa
771-LTA...
Sockets 1/2", extra deep, inch
770-LM...
Sockets 1/2", metric, bihexagon
771-LM...
Sockets 1/2", metric
770-LA...
Sockets 1/2", inch
771-LA...
Sockets 1/2", inch
770-LW...
Sockets 1/2", whitworth
770-LT...
Sockets 1/2", extra deep, metric
771-LTA...
Sockets 1/2", extra deep, inch

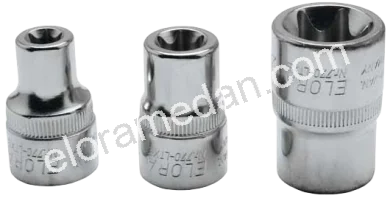

770-LTXE...
