Sockets 1/2", whitworth
770-LW...
Description
- hot forged
- chrome-plated, polished
- knurled
- ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
- according to DIN 3124, ISO 2725-1

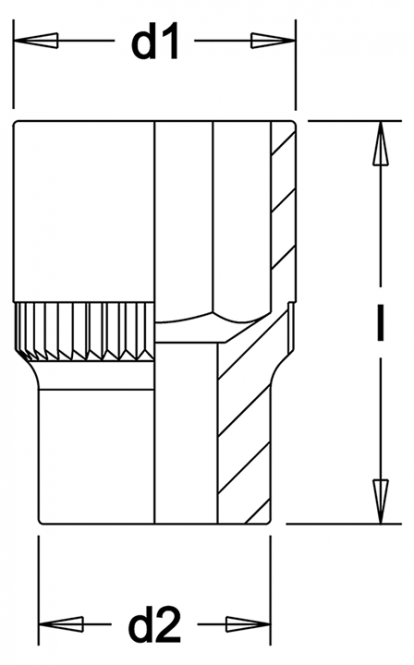

Measurements
| Number | Length mm | D1 mm | D2 mm | Weight g |
|---|---|---|---|---|
| 770-LW 1/8 | 40 | 12,8 | 23,0 | 56 |
| 770-LW 3/16 | 40 | 16,3 | 23,0 | 58 |
| 770-LW 1/4 | 40 | 19,4 | 23,0 | 60 |
| 770-LW 5/16 | 40 | 21,5 | 23,0 | 62 |
| 770-LW 3/8 | 40 | 25,3 | 23,0 | 64 |
| 770-LW 7/16 | 40 | 28,8 | 24,0 | 78 |
| 770-LW 1/2 | 40 | 31,7 | 25,2 | 90 |
| 770-LW 9/16 | 42 | 34,7 | 25,7 | 108 |
| 770-LW 5/8 | 44 | 37,5 | 27,2 | 140 |
| 770-LW 11/16 | 46 | 40,7 | 27,0 | 170 |
| 770-LW 3/4 | 46 | 43,9 | 28,0 | 180 |
