Sockets 1/2", inch

771-LA...

Description

hot forged
chrome-plated, polished
knurled
ELORA-Chrome-Vanadium 31CrV3 / 1.2208
female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
according to DIN 3124, ISO 2725-1

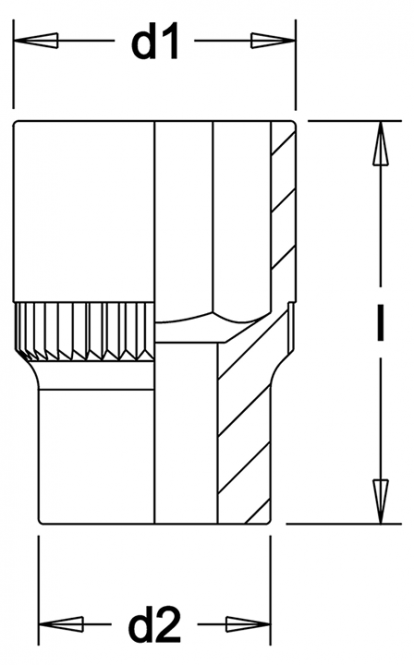

Measurements

Number	Length mm	D1 mm	D2 mm	Weight g
771-LA 1/4	40	10,0	23,0	56
771-LA 5/16	40	12,2	23,0	56
771-LA 3/8	40	13,9	23,0	56
771-LA 7/16	40	16,3	23,0	56
771-LA 1/2	40	18,7	23,0	60
771-LA 9/16	40	20,2	23,0	62
771-LA 19/32	40	21,5	23,0	62
771-LA 5/8	40	22,7	23,0	66
771-LA 11/16	40	24,7	23,0	66
771-LA 3/4	40	26,5	23,0	66
771-LA 25/32	40	27,8	23,0	72
771-LA 13/16	40	28,4	23,6	76
771-LA 7/8	40	30,5	24,0	84
771-LA 15/16	42	32,4	24,6	92
771-LA 31/32	42	33,3	25,5	106
771-LA 1	42	34,3	26,1	112
771-LA 1.1/16	44	36,5	26,2	130
771-LA 1.1/8	44	38,4	27,2	150
771-LA 1.3/16	44	40,1	28,0	160
771-LA 1.1/4	46	42,6	28,0	170
