Sockets 1/2", inch

770-LA...

Description

hot forged
chrome-plated, polished
knurled
ELORA-Chrome-Vanadium 31CrV3 / 1.2208
female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
according to DIN 3124, ISO 2725-1

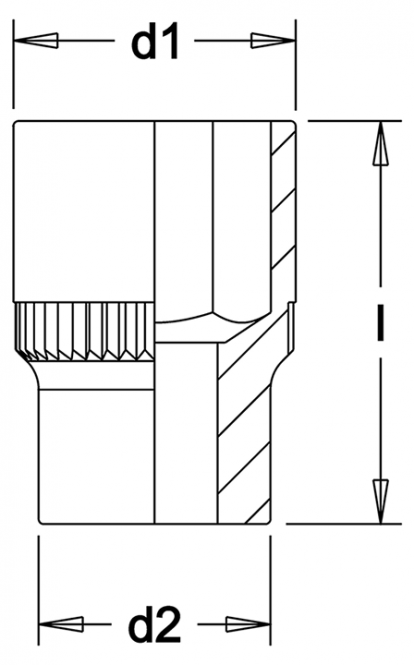

Measurements

Number	Length mm	D1 mm	D2 mm	Weight g
770-LA 5/16	40	12,2	23,0	56
770-LA 11/32	40	12,8	23,0	56
770-LA 3/8	40	13,9	23,0	56
770-LA 13/32	40	15,0	23,0	56
770-LA 7/16	40	16,3	23,0	56
770-LA 1/2	40	18,4	23,0	60
770-LA 9/16	40	20,2	23,0	62
770-LA 19/32	40	21,5	23,0	62
770-LA 5/8	40	22,7	23,0	66
770-LA 21/32	40	24,0	23,0	66
770-LA 11/16	40	24,7	23,0	66
770-LA 3/4	40	26,5	23,0	66
770-LA 25/32	40	27,8	23,0	72
770-LA 13/16	40	28,4	23,6	76
770-LA 7/8	40	30,5	24,0	84
770-LA 15/16	42	32,4	23,4	92
770-LA 31/32	42	33,3	25,1	106
770-LA 1	42	34,3	25,3	112
770-LA 1.1/16	44	36,5	26,2	130
770-LA 1.1/8	44	38,4	27,2	150
770-LA 1.3/16	44	40,1	28,0	160
770-LA 1.1/4	46	42,6	28,0	170
770-LA 1.5/16	46	44,9	29,0	180
