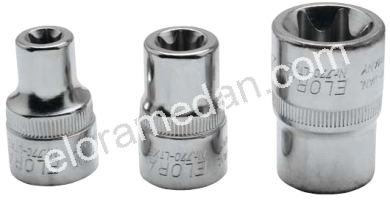

Sockets 1/2", TORX®
770-LTXE...
Description
- for outside TORX®screws
- hot forged
- chrome-plated, polished
- knurled
- ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
- TORX®= reg. trademark of Acument Intellectual Properties, LLC. USA

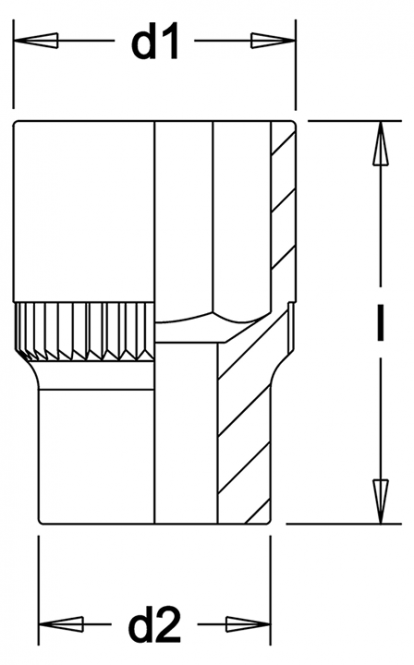

Measurements
| Number | Torx size corner to corner mm | Length mm | D1 mm | D2 mm | Weight g |
|---|---|---|---|---|---|
| 770-LTXE 10 | 9,42 | 36 | 15,0 | 23,0 | 50 |
| 770-LTXE 11 | 10,08 | 36 | 15,0 | 23,0 | 53 |
| 770-LTXE 12 | 11,17 | 36 | 17,0 | 22,0 | 56 |
| 770-LTXE 14 | 12,90 | 36 | 19,0 | 22,0 | 59 |
| 770-LTXE 16 | 14,76 | 36 | 21,0 | 22,0 | 60 |
| 770-LTXE 18 | 16,70 | 38 | 21,0 | 25,0 | 78 |
| 770-LTXE 20 | 18,45 | 38 | 24,0 | 25,0 | 86 |
| 770-LTXE 24 | 22,16 | 38 | 28,0 | 25,0 | 104 |
