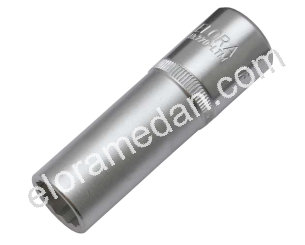

Sockets 1/2", extra deep, inch
770-LTA...
Description
- especially suitable for deep-set female screws on long threaded bolts
- hot forged
- chrome-plated, polished
- knurled
- ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
- according to DIN 3124, ISO 2725-1

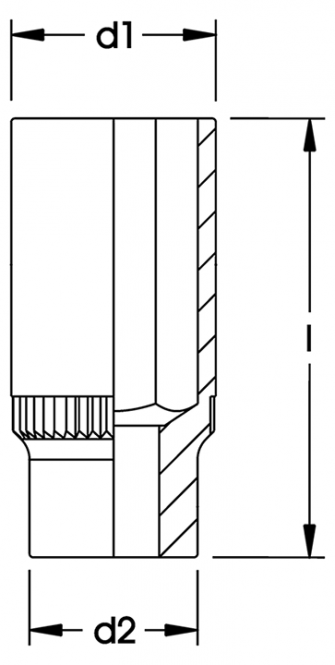

Measurements
| Number | Length mm | D1 mm | D2 mm | Weight g |
|---|---|---|---|---|
| 770-LTA 1/2 | 80 | 18,9 | 23,0 | 130 |
| 770-LTA 9/16 | 80 | 20,2 | 23,0 | 130 |
| 770-LT 16 / 5/8 | 80 | 22,7 | 24,0 | 130 |
| 770-LTA 11/16 | 80 | 24,4 | 23,0 | 140 |
| 770-LT 19 / 3/4 | 80 | 26,6 | 23,0 | 155 |
| 770-LTA 13/16 | 80 | 29,1 | 23,5 | 185 |
| 770-LTA 15/16 | 80 | 32,9 | 24,3 | 220 |
| 770-LTA 1 | 80 | 34,4 | 25,0 | 235 |
| 770-LT 27 / 1.1/16 | 80 | 36,0 | 26,3 | 235 |
