Sockets 1/2", extra deep, metric
771-LT...
Description
- especially suitable for deep-set female screws on long threaded bolts
- hot forged
- chrome-plated, polished
- knurled
- ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
- according to DIN 3124, ISO 2725-1

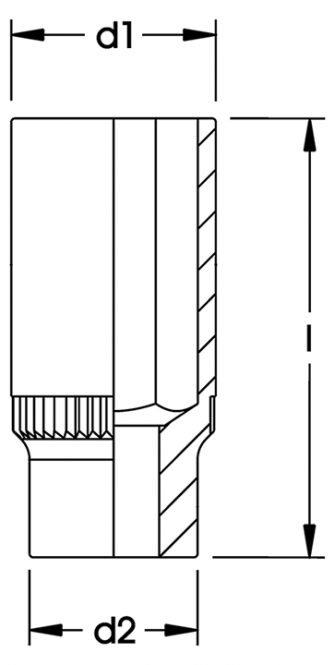

Measurements
| Number | Length mm | D1 mm | D2 mm | Weight g |
|---|---|---|---|---|
| 771-LT 22 | 80 | 304 | 240 | 190 |
| 771-LT 10 | 80 | 151 | 230 | 104 |
| 771-LT 11 | 80 | 163 | 230 | 106 |
| 771-LT 12 | 80 | 177 | 230 | 108 |
| 771-LT 13 | 80 | 189 | 230 | 122 |
| 771-LT 14 | 80 | 202 | 230 | 130 |
| 771-LT 15 | 80 | 215 | 235 | 130 |
| 771-LT 16 | 80 | 227 | 240 | 130 |
| 771-LT 17 | 80 | 240 | 230 | 135 |
| 771-LT 18 | 80 | 255 | 230 | 155 |
| 771-LT 19 | 80 | 266 | 230 | 155 |
| 771-LT 21 | 80 | 291 | 235 | 185 |
| 771-LT 38 / 1.1/2 | 80 | 515 | 275 | 375 |
